Weinmann / Homag Automated Prefabricated Wood Panel Manufacturing System

Location: 495 North St. Windsor Locks, CT 06096

Start Date:
All Assets Available for Immediate Sale & Delivery

Preview Dates:
By appointment only

Buyers Premium 18%

A comprehensive collection of premium machinery & equipment originally configured for large-scale production of prefabricated wood building components including wood floors/roofs, interior wall panels, and exterior wall panels for multi-family offsite construction. The equipment also offers flexibility for general industrial wood processing applications.

SYSTEM HIGHLIGHTS

• (6) Distinct automated production lines comprised of over (85) individual components
• The modular nature of the equipment allows for partial acquisition of specific production lines or individual components to match existing operations or create custom manufacturing workflows
• Equipment was new between 2021 – 2023, has never been placed into production, and has been stored in original condition & packaging since delivery from Germany
• All equipment features UL/CSA compliance for North American electrical standards
• Documentation includes original technical specifications, equipment layout schematic, and detailed equipment listing with serial numbers
• Stiles, HOMAG Group’s wholly-owned North American sales and service subsidiary, available to buyers for aftersales service support (parts, installation, routine maintenance) for a fee as needed. Manufacturer warranty has expired.

PRODUCTION CAPABILITY & CONFIGURATION

Element dimensions: 1.5 to 3.2 meters wide, up to 16 meters long

Frame heights: 75-200mm with adjustable configurations

Processing accuracy: ±1mm positioning tolerance

​Exterior Wall Panel Fabrication Line

• (34) integrated components capable of producing wall elements up to 3.2 meters high and 12 meters long with full automation for positioning, nailing, sheathing, and insulation placement
• Weinmann/Homag FRAMETEQ F-500 16-meter capacity automated framing stations
• Weinmann/Homag STORETEQ H-100 material handling storage system
• (22) Weinmann/Homag MOVETEQ P-700 & T-500 material transport & processing tables

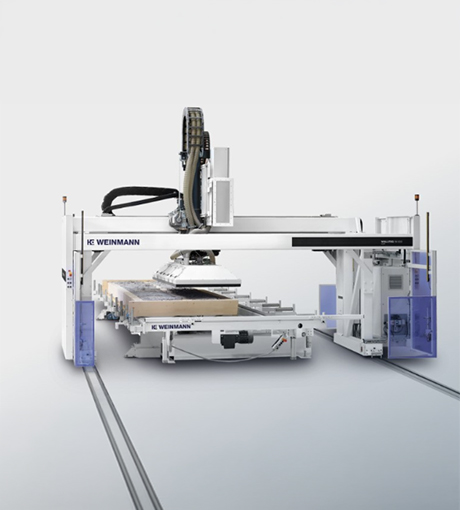

• (2) Weinmann/Homag WALLTEQ M-380 multi-function fastening bridges
• Weinmann/Homag WALLTEQ M-300 InsuFill insulation integration system w/ ISOCELL Blowing Equipment
• Weinmann/Homag STOCKTEQ U-530 setup, transport and distribution trolley
• (6) Vacuumaster Glass 300 & 500-kg window lifters
• Sheet application tables, Schmalz vacuum lifting systems

​Closed Floor/Roof Cassette Line

• (15) integrated components for manufacturing enclosed floor and roof panels. Features inverted framing capability.
• Weinmann/Homag WALLTEQ M-380 multi-function fastening bridge w/ provisions for adhesive application system
• (10) Weinmann/Homag MOVETEQ P-700 material transport, butterfly siding, and processing tables
• Gorbel gantry cranes and Schmalz vacuum lifting systems

​(3) Open Floor/Roof Lines

• (3) parallel production lines configured for open-frame floor and ceiling cassette production. One complete line with (14) components; two partial lines with (5-6) components each).
• (3) Weinmann/Homag WALLTEQ M-380 multi-function fastening bridge w/ provisions for adhesive application system
• (8) Weinmann/Homag MOVETEQ P-700 material transport and processing tables
• Gorbel gantry cranes and Schmalz vacuum lifting systems

​Interior Wall Line

• (11) integrated components with manual build capabilities
• Weinmann/Homag STOCKTEQ U-530 setup, transport and distribution trolley
• (6) Weinmann/Homag MOVETEQ P-700 & T-500 material transport & processing tables
• Weinmann/Homag WALLTEQ M-380 multi-function fastening bridge
• Minda power bridge bi-pass for flexible workflow
• Schmalz vacuum lifting systems

Automation & Control

All major equipment features Weinmann/HOMAG powerControl V2.0 systems, 21.5″ Full-HD multi-touch operating panels, remote diagnostics via TeleServiceNet, integrated machine data acquisition (MMR Basic), and standardized powerTouch interfaces for intuitive operation.
